Classification of Aluminum Composite Plates

Aluminum Composite Board is made of polyethylene plastic as the core material. The chemically treated aluminum plate is used as the surface material and is treated by a certain process. Composite materials.

Aluminum-plastic composite board is made of multiple layers of material. The upper and lower layers are high purity aluminum alloy plates with non-toxic low density polyethylene core plates in the middle and a protective film attached to the front surface.

The advantages of aluminum-plastic composite board are economy, color, convenient construction, excellent processing performance, fire prevention, corrosion resistance, impact resistance, moistureproof sound insulation, heat insulation, light weight, easy processing, easy processing and other advantages. Handling and installation. Wait a minute, it quickly became popular.

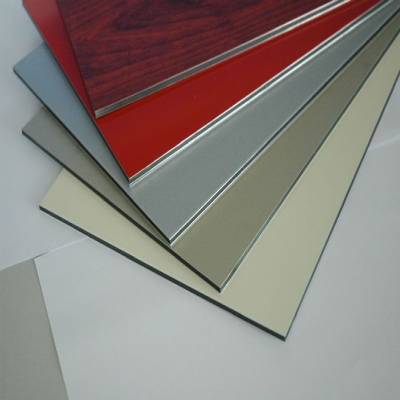

Aluminum Composite Board

Classification by Purpose

1. Aluminum plastic board for building curtain wall: the minimum thickness of upper and lower aluminum board shall not be less than 0.50mm, and the total thickness shall not be less than 4mm. The material of aluminum shall meet the requirements of GB/T 3880. Generally, 3000 and 5000 series aluminum alloy plates should be used. The coating shall be coated with fluorocarbon resin.

2. Aluminum-plastic Composite Board for exterior wall decoration and advertisement: both upper and lower aluminum boards are made of rust-proof aluminum with a thickness of no less than 0.20mm and a total thickness of no less than 4mm. The coating is usually a fluorocarbon or polyester coating.

3. Indoor aluminum composite plate: the upper and lower aluminum plates generally adopt aluminum plates with a thickness of 0.20mm and a minimum thickness of not less than 0.10mm, and the total thickness is generally 3mm. The coating is a polyester coating or an acrylic coating.

Categorize by product function

1.Fire Proof Aluminium Composite Panel: choose flame retardant core materials, the combustion performance of products to achieve flame retardant or non-combustible level, other performance indicators must also meet the technical requirements of aluminum composite board.

2. Antibacterial and mildew-proof ALUMinum-plastic composite board: Apply antibacterial and antibacterial coating on the aluminum-plastic composite board to control the activity of microorganisms and finally kill bacteria.

3. Anti-static aluminum composite board: anti-static aluminum plastic board coated with anti-static coating. Surface resistivity is lower than 109 Ω, not easy to produce static electricity, dust in the air is not easy to adhere to the surface.

According to the surface decoration effect classification

1. Decorative aluminum composite board: Various decorative coatings are applied on the surface of aluminum board, such as fluorocarbon compound, polyester, acrylic coating, mainly including metal, plain, pearlite, fluorescent, etc., with decorative effect is the most common variety in this field. The market.

2. Oxidized non-ferrous aluminum composite board: the aluminum alloy panel timely treated by anodic oxidation has unique colors such as rose red and bronze color, playing a special decorative effect.

3. Film decorative composite board: according to the set process conditions, according to the set process, the color film adhesive is glued to the aluminum plate with primer or directly attached to the degreased aluminum plate. The main varieties are slats, planks and so on.

4. Color printing aluminum-plastic board: different patterns and color ink are printed on the transfer paper through advanced computer photo printing technology to copy various natural patterns, and then various imitation natural forms are indirectly carried out on the aluminum-plastic board through heat transfer technology.

5. Brushed aluminum composite plate: the surface of brushed aluminum alloy panel is used. Gold brushed wire and silver brushed wire are commonly used, bringing people different visual enjoyment.

6. mirror aluminum composite plate: aluminum alloy surface polishing, like a mirror.
